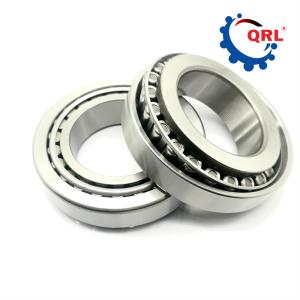

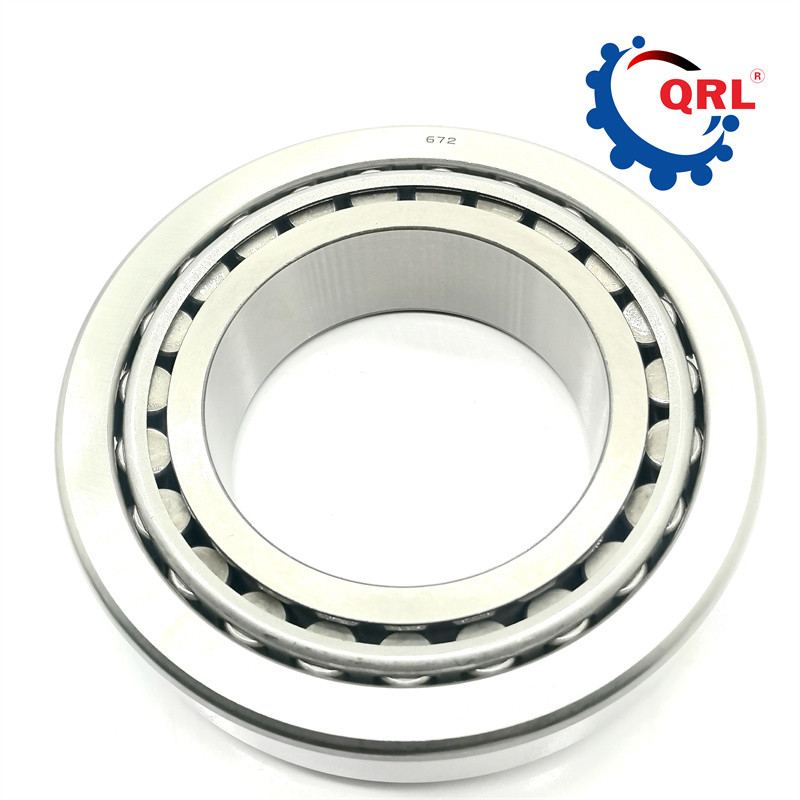

683/672 Single Row Tapered Roller Bearing 95.25x168.2x41.27mm

Name: 683672 Single Row Tapered Roller Bearing 9525x1682x4127mm
Brand: OEM-QRL
Price: 1 USD

China 683/672 Single Row Tapered Roller Bearing 95.25x168.2x41.27mm wholesale

Brand Name : OEM-QRL

Model Number : 683/ 672

Certification : ISO2000/9002

Place of Origin : CHINA

MOQ : 30

Price : Negotiable

Payment Terms : , Western Union, D/A, MoneyGram

Supply Ability : 1000 PCS

Delivery Time : time by quantity

Packaging Details : Carton/woven bag

Size : 95.25x168.2x41.27mm

Dimensions : 683/ 672

Type : Taper Roller Bearing

Application : Engineering Machinery

Weight : 2.8 kg.

Contact Now

683/ 672 Tapered Roller Bearing 95.25x168.2x41.27mm

Tapered Roller Bearing Specification

d(mm)	95.250
D(mm)	168.275
T(mm)	41.275
B(mm)	41.275
C(mm)	30.162
r(min.)(mm)	3.6
r1(min.)(mm)	3.2
Basic load ratings : Cr(kN)	282
Basic load ratings : C0r(kN)	349
Fatigue load limit : Cu(kN)	50.4
Limiting speeds(Grease lub.)(min-1)	2200
Limiting speeds(Oil lub.)(min-1)	3000
Load center spread : a(mm)	38.6
Constant :e()	0.47
Axial load factors : Y1()	1.28
Axial load factors : Y0()	0.70

Taper Roller Bearing Description

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.

Tapered Roller Bearing Product number

TOYOTA	90366-45016	KOYO	32211JR
TOYOTA	90366-45035	NSK	R45-33g
TOYOTA	90366-48001	KOYO	ST4890
TOYOTA	90366-48002	KOYO	ST4870
TOYOTA	90366-50001	NACHI	50 KB8301
TOYOTA	90366-50007	KOYO	TR100802-2
TOYOTA	90366-50054	NACHI	32010 JA1
TOYOTA	90366-50087	KOYO	32010JA1/50KB102
TOYOTA	90366-51001	KOYO	ST5186LFT
TOYOTA	90366-54011	KOYO	ST5487-N
TOYOTA	90366-55065	KOYO	ST5590 A
TOYOTA	90366-58001	KOYO	ST5888-N
TOYOTA	90366-60001	KOYO	28985/921
TOYOTA	90366-60002	KOYO	32012 J/1B-N

Taper Roller Bearings Applications

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
