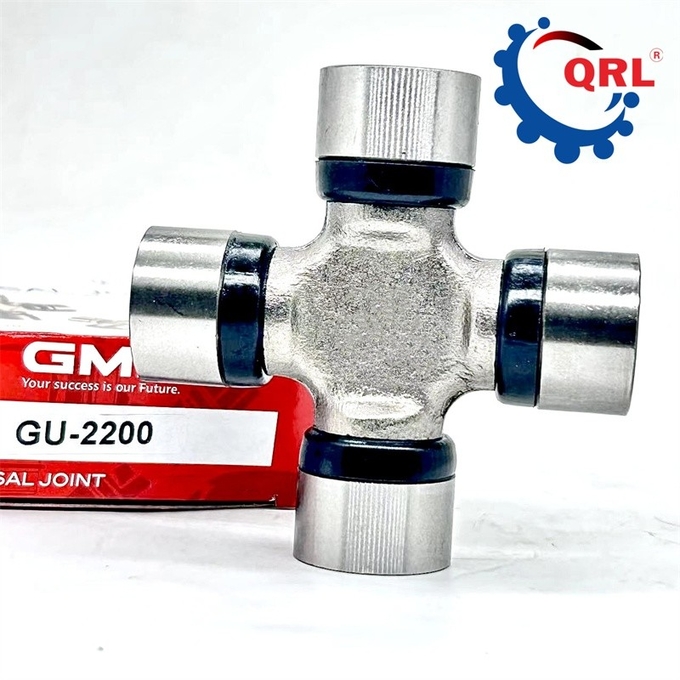

GU2200 M 30.18X 92 MM Universal Joint Bearing for Mazda BT50 2.2
Universal Joint Bearing Specification
Universal Joint specifications:Figure Type = Al
L=Assembly Size: 92.05mmD=Case Size: 30.18mm
Universal Joint Bearing Description
Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
| NISSAN |
| Type | Part No | D mm | O mm | L mm | Spice No | Original No | KOYO | MATSUBA |
| A | GUN-26 | 23.82 | | 61.3 | | 37125-11975 | N2461 | UJ110 |
| B | GUN-27 | 25 | 40 | | RUJ-1781 | 37125-14627 | N2563 | UJ111 |
| B | GUN-28 | 20.01 | 35 | 57 | RUJ-1780 | 37125-18025 | N2057 | |
| B | GUN-29 | 28 | 53 | | RUJ-2028 | 39625-21025 | N2880BA | UJ112 |
| A | GUN-30 | 30.188 | | 92.08 | | 37125-85461 | N3092 | |
| IA | GUN-31 | 32 | | 107 | K5-A564 | 37125-50001 | N32111 | UJ114 |
| A | GUN-32 | 35.5 | | 119.2 | K5-A568 | 37125-58026 | N36119 | UJ115 |
| IB | GUN-33 | 43 | | 128 | K5-A575 | 37125-99901 | ND43128 | UJ119 |
| B | GUN-34 | 25 | 52 | | RUJ-2040 | 37125-76025 | N2580 | UJ113 |
| B | GUN-35 | 32 | 64 | 91.8 | | 37125-01J25 | | |
| A | GUN-36 | 25 | | 77.6 | | 37125-4101(6510) | NP2578 | UJ120 |
| B | GUN-38 | 26 | 45.6 | | | 37125-68200 | | UJ121 |
| IA | GUN-41 | 43 | | 136 | K5-A547 | 37125-90128 | ND43142 | UJ120 |
| IA | GUN-43 | 55.1 | | 163.8 | K5-A548 | 37125-90027 | ND43128B | UJ125 |
| A | GUN-44 | 20.5 | | 56.6 | | 48155-99000 | | UJ118 |
| A | GUN-45 | 20.7 | | 52.4 | K5-A648 | 37125-H8500 | | |
| B | GUN-46 | 27 | 46 | | RUJ-1700 | 37126-01G25 | | UJ124 |
Universal Joint Bearing Delivery
When the vehicle is running, because the direction of torque transmission is the same, the direction of force on the cross shaft is also the same. Over time, the unilateral wear of the cross shaft journal is caused. As time goes by, the force side of the cross shaft will wear more and more, and grooves will cause looseness and noise. You can use the cross shaft to rotate 90° relative to the original position, which can extend the use time. When assembling, pay attention to the side with the oil nozzle facing the drive shaft. The universal joint fork should rotate freely on the cross shaft, and there should be no jamming, and there should be no axial gap. Grease should be injected frequently in daily maintenance to prevent the wear of the cross shaft journal and bearings due to lack of grease.
Product Tags:
|
|

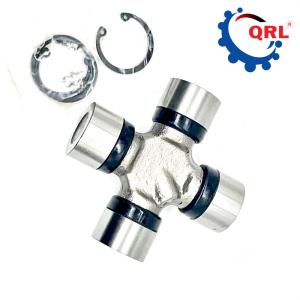

GU2200 M 30.18X 92 MM Universal Joint Bearing for Mazda BT50 2.2 Images
|
