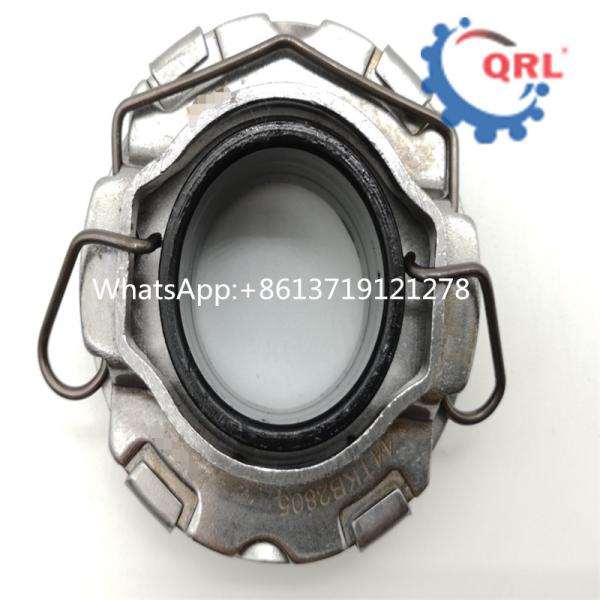

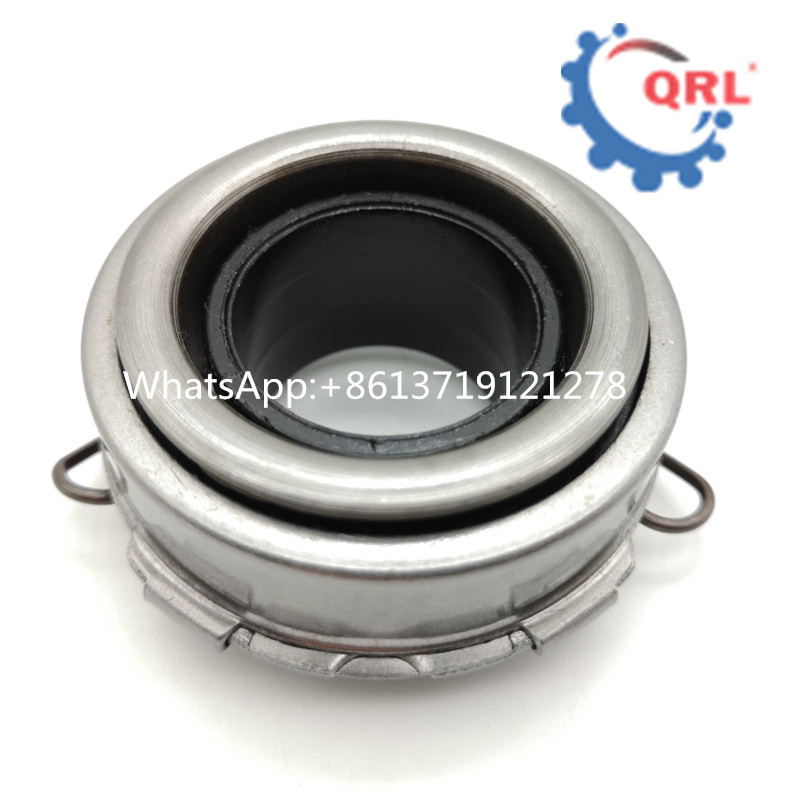

ZA 44TKB2805 BR CLUTCH RELEASE BEARING 28.2X57X33 RCT282SA

Brand Name : QRL

Model Number : 44tkb2805

Certification : ISO9001

Place of Origin : CHINA

MOQ : 30

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 60000

Delivery Time : 7-10 Working

Packaging Details : Carton/woven bag

Type : Clutch Release Bearing

Applicable models : For 88-92 Daihatsu

OEM : 44tkb2805

Size : 28.2X57X33

Weight : 0.421 kg/pcs

Number : RCT282SA

Material : Chrome Steel GCR15

Brand : OEM packing

Contact Now

ZA 44TKB2805 BR CLUTCH RELEASE BEARING 28.2X57X33 RCT282SA

Clutch Release Bearing Specification

Year	Make	Model	Trim	Engine	Notes
1992	Daihatsu	Charade	SE Sedan 4-Door	1.3L 1295CC l4 GAS SOHC Naturally Aspirated	Mfrlabel: Koyo Clutch Release Bearing \| PartType: Clutch Release Bearing \| Quantity Required: 1 \|
1992	Daihatsu	Charade	SE Sedan 4-Door	1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated	Mfrlabel: Koyo Clutch Release Bearing \| PartType: Clutch Release Bearing \| Quantity Required: 1 \|
1992	Daihatsu	Charade	SX Sedan 4-Door	1.3L 1295CC l4 GAS SOHC Naturally Aspirated	Mfrlabel: Koyo Clutch Release Bearing \| PartType: Clutch Release Bearing \| Quantity Required: 1 \|
1991	Daihatsu	Charade	SE Sedan 4-Door	1.3L 1295CC l4 GAS SOHC Naturally Aspirated	Mfrlabel: Koyo Clutch Release Bearing \| PartType: Clutch Release Bearing \| Quantity Required: 1 \|
1991	Daihatsu	Charade	SE Sedan 4-Door	1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated	Mfrlabel: Koyo Clutch Release Bearing \| PartType: Clutch Release Bearing \| Quantity Required: 1 \|

Clutch Release Bearing Description

The clutch release bearing is installed between the clutch and the transmission. The release bearing seat is loosely sleeved on the tubular extension of the first shaft bearing cover of the transmission. The shoulder of the release bearing is always against the release fork through the return spring and retracts to the final position. , Keep a gap of about 3~4mm with the end of the separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine crankshaft operate synchronously, and the release fork can only move axially along the output shaft of the clutch, it is obviously impossible to directly use the release fork to dial the release lever. The release bearing can make the release lever rotate side by side. The output shaft of the clutch moves axially, which ensures that the clutch can engage smoothly, disengage softly, reduce wear, and extend the service life of the clutch and the entire drive train.

Clutch Release Bearing Product number

QRL No.	Parts No.	NSK	NTN	KOYO	NACHI
QRL-ISUZU/6	5-31314-001	54TKA3501		RCT401SA
QRL-ISUZU/7	1-09820-078-0	78TKC5401
QRL-ISUZU/8	9-00095-038-1	TK45-4U3	45TMK804X	CT45-1S	45TNK804
QRL-ISUZU/9	1-09820-008-0 9-00095-038-1	TK55-1A1U3	55TMK804X/2E	CT55BL1	55TMK804
QRL-ISUZU/10	9-00095-044-1	TK70-1A1U3	SF1412/2E	CT70B/L1	70TNK-1
QRL-ISUZU/11	8-97209-197-0	48TKB3204R
QRL-ISUZU/12	8-97333-487-0	48TKB3205
QRL-ISUZU/13	8-97089-652 8-97013-553	78TKL4001AR
QRL-ISUZU/14	8-97255-313-0	78TKL4801R
QRL-ISUZU/15	8-94377-417-1	68TKP3201
QRL-ISUZU/16	8-97316-591-0	60TKZ3201
QRL-ISUZU/17	8-94133-417	48TKA3211
QRL-ISUZU/18	8-97316-602-0	60TKZ3503R
QRL-ISUZU/19	1-31310-022-0	106TKL6101RA1
QRL-ISUZU/20	1-31310-012-0	81TKL4801R

Clutch Release Bearing Precautions

1. According to the operating regulations, avoid the clutch half-engaged and half-disengaged, and reduce the number of times the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak the butter so that it has sufficient lubricant during regular or annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the impact load.
6. Step on it lightly and easily to make it join and separate smoothly.
