GUIS 55 Universal Joint Bearing 42 * 125MM OEM 9-37300-150 For ISUZU

Brand Name : QRL

Model Number : GUIS 55

Certification : ISO9001

Place of Origin : China

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000pcs

Delivery Time : 15days

Packaging Details : Oem/Neutral

Type : Universal Joint Beairng

Oe no. : GUIS 55

Size : 42 * 125MM

Quality : Standrad

MQQ : 1 PCS

Application : For ISUZU

Weight : 2.76 KG

Contact Now

GUIS 55 Universal Joint Bearing 42 * 125MM OEM 9-37300-150 For ISUZU

Universal Joint Bearing Specification

BRAND	QRL
PART NUMBER	GUIS 55 9-37300-150
DESCRIPTION	Universal joint bearing
CAR BRAND	ISUZU
MODEL	ISUZU 7.5 -8 TON, 10 TON, 11 – 12 TON, BUS
MODEL CODE	BR, BU, TD151, TD50, TD51E, TM65D, TM85E, TP60D, TP81

Universal Joint Bearing Description

Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.

Universal Joint Bearing Product number

ISUZU
Type	Part No	D mm	O mm	L mm	Spice No	Original No	KOYO	MATSUBA
A	GUIS-51	23.82		61.3		9-37300-017	12461	UJ313
B	GUIS-52	29	50			9-37300-065	12976	UJ314(324)
IA	GUIS-54	36		97	K5-A523	9-37300-055	136101	UJ311
IA	GUIS-55	42		125	K5-A574	9-37300-150	142129A	UJ320
A	GUIS-56	23.82		61.3		9-37300-609	12461	UJ323
IA	GUIS-57	48		145	K5-A582	9-37300-163	148149	UJ321
IA	GUIS-58	36		97		9-37300-112	136101A	UJ312
A	GUIS-59	20.5		56.6		44135-060		UJ315
G	GUIS-60	49.2		148.38		9-37300-139-0	070004AR-1	UJ339
A	GUIS-61	23.82		61.3		9-37300-031	12491	UJ313
A	GUIS-62	35		103.92	K5-A567	1-37300-0130	1351041
A	GUIS-63	22.06		62.5	K5-A653	94207232-1
A	GUIS-64	40		115	K5-A639	1-37300-047-0
IS	GUIS-65	45.98		136	K5-A577	1-37300-004-0	146142WS	UJ340
A	GUIS-66	33		93	K5-A679	5-37300-032-0	133931W	UJ325
G	GUIS-67	56		173.9	114-8209	1-37300-049-0
IA	GUIS-68	50		155		1-37300-082-0
A	GUIS-69	27		81.75		8-97020-279-0
B	GUIS-70	29	49			8-97080-897-0
B	GUIS-71	29	49		RUJ-2033	8-97180-697-0
A	GUIS-72	42		115	K5-A753

Universal Joint Bearing Delivery

1) Avoid collision and stacking during disassembly, transportation and storage;
(2) The inertia of the vehicle should not be used to start the engine to avoid impact;
(3) Avoid lifting the clutch pedal sharply, and shift gears smoothly;
(4) When the vehicle is braked as far as possible, the transmission is in neutral or the clutch is in a disengaged state to prevent transmission overload;

GUIS 55 Universal Joint Bearing 42 * 125MM OEM 9-37300-150 For ISUZU

Product Tags:

GUIS 55 Universal Joint Bearing

9-37300-150 Universal Joint Bearing

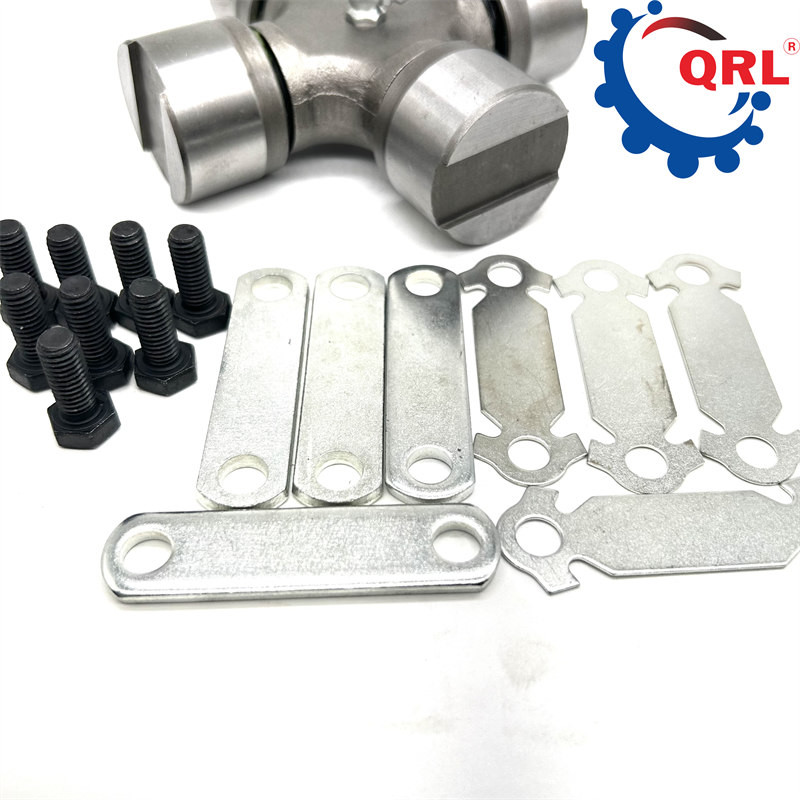

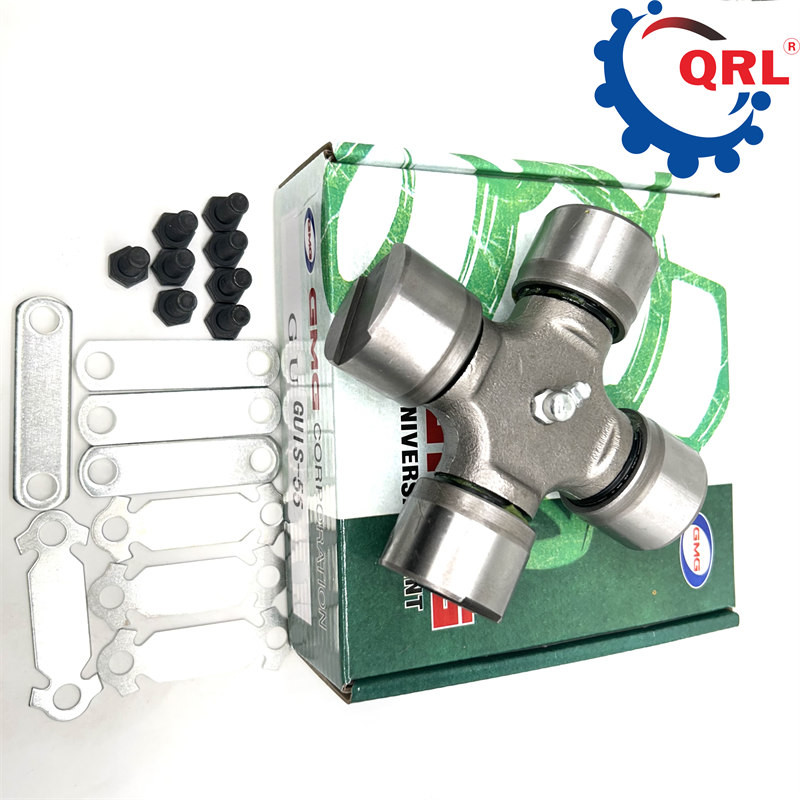

GUIS 55 Universal Joint Bearing 42 * 125MM OEM 9-37300-150 For ISUZU Images
