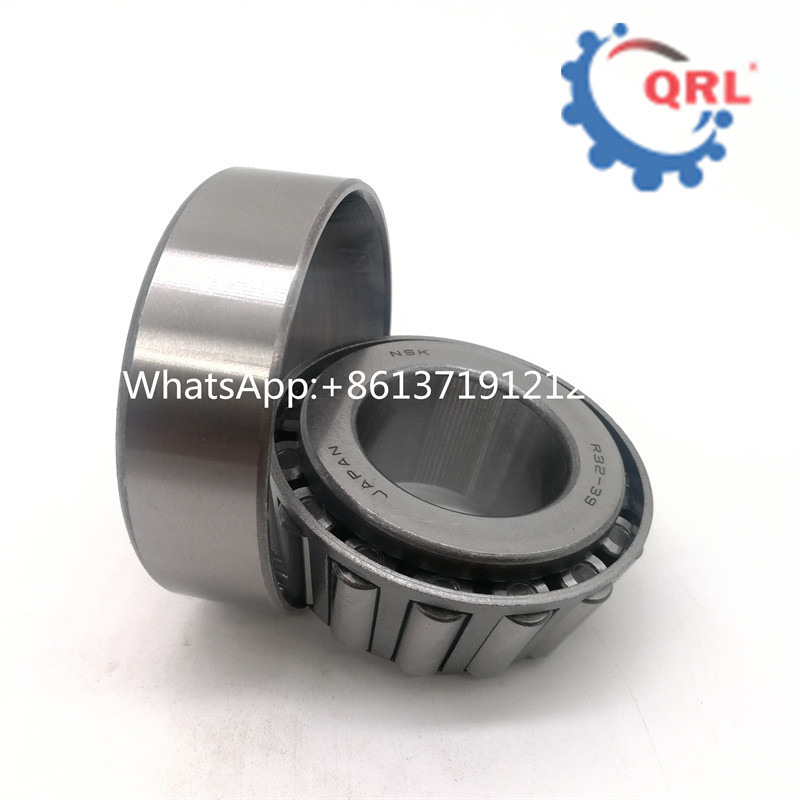

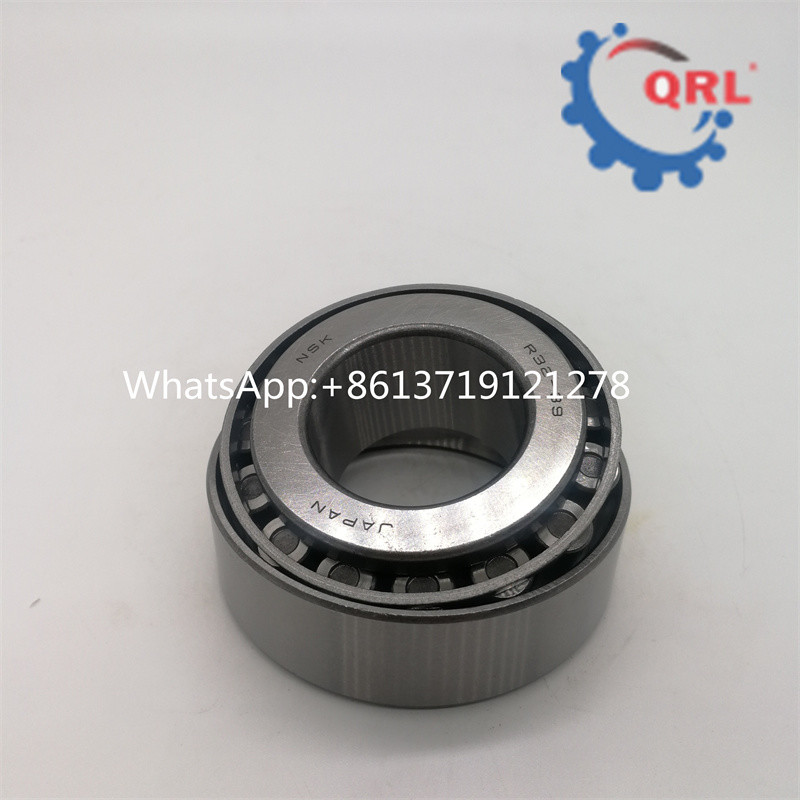

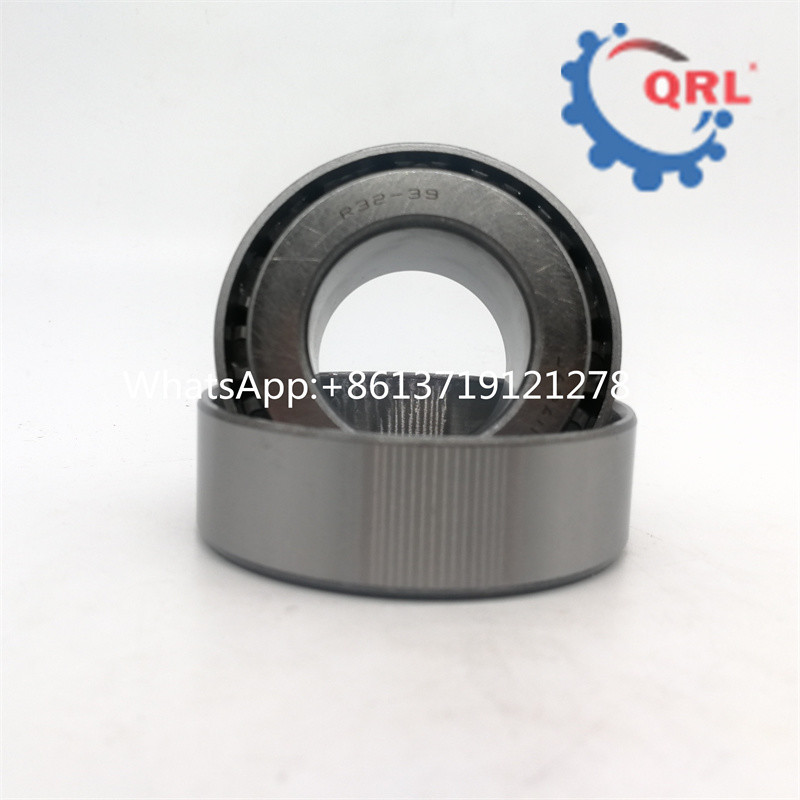

R32-39 Tapered Roller Bearing Single Row Size 32x65x26mm

  • 1
  • 2

Brand Name : 0EM-QRL

Model Number : R32-39

Certification : ISO2000/9001

Place of Origin : CHINA

MOQ : 51

Price : Negotiable

Payment Terms : L/C, D/A, D/P

Supply Ability : 10000 PCS

Delivery Time : time by quantity

Packaging Details : Carton/woven bag

Type : Taper Roller Bearing

Inch : 32x65x26.

Number of row : R32-39

Roller Bearing Type : inch bearing

Number of Row : Single row

Weight : 0.85 kg

Seals Type : Open

Contact Now

Bearing number : R32-39. Tapered roller bearings Size (mm) : 32x65x26.

Tapered Roller Bearing Specification

Tapered roller bearings R32-39

Bearing number : R32-39

Size (mm) : 32x65x26

Brand : NSK

Bore Diameter (mm) : 32

Outer Diameter (mm) : 65

Width (mm) : 26

Taper Roller Bearing Description

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row

Tapered Roller Bearing Product number

Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
4395/4335 42.07 90.488 40.386 33.338 39.688 186.5 142.9 4300 5800 1.245
25577/25523 42.875 82.931 25.4 22.225 26.988 111.1 83.9 4500 6000 0.61
HM 803149 / HM 803110 44.45 88.9 29.37 23.02 30.162 125 93.5 4300 5800 0.84
355X/352 44.45 90.119 21.692 21.808 23 85 76.1 4400 5800 0.68
HM 803149/HM 803112 44.45 92.075 29.37 23.02 30.162 125 93.5 4300 5800 0.92
HM 903249 / HM 903210 44.45 95.25 28.575 22.225 30.958 122 101 3600 4800 1.012
527 / 522 44.45 101.6 36.068 26.988 34.925 169 137.3 3800 5000 1.35
535 532 A 44.45 111.125 36.957 30.162 38.1 191.2 149.3 3600 4800 1.885
U 497 / U 460 L 44.987 79.975 26 22 24 83.9 70.2 4500 600 0.475
HM905843/HM 905810 44.987 104.986 31.75 23.368 32.512 147.1 110.2 3200 4300 1.37
JF 4549 / JF 4510 (T 2ED 045) 45 95 35 30 36 188.1 149 4000 3500 1.2


Taper Roller Bearings Applications

1.Most Competitive Price.

2.Help you to choose the best freight.

3.Provide all document for your Customs Clearance.

4.We will undertake the responsibility if there is any problems.

Trustworthiness is the basis of great bussiness.And we have the powerful ability to support your business!
