418/414 Tapered Roller Bearing QRL Brand 38.10x88.50x26.99
Tapered Roller Bearing Specification
Brand: QRL
Measurement Unit: Imperial
Inside Diameter: 38.10mm
Outside Diameter: 88.50mm
Width: 26.99mm
Cone Width: 29.08mm
Cup Width: 22.23mm
Weight - 0,851 Kg
Basic dynamic load rating (C) - 98100 kN
Basic static load rating (C0) - 112000 kN
(Grease) Lubrication Speed - 4000 r/min
(Oil) Lubrication Speed - 5700 r/min
Calculation factor (e) - 0.26
Calculation factor (Y0) - 1.25
Calculation factor (Y1) - 2.28
Inch Taper Roller Bearing Description
Tapered Roller Bearings generally come in two parts - the cone (consisting of the inner ring and roller cage assembly) and the cup (outer ring). The Part Number for these bearings is comprised of the "Cone Reference / Cup Reference". These two parts can be mounted separately.
Tapered Roller Bearings are particularly suited to the accommodation of combined radial and axial loads
Product number
| Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS |
| d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) |
| LM 11949 / LM11910 | 19.05 | 45.237 | 16.637 | 12.065 | 15.494 | 28.6 | 28 | 8900 | 12000 | 0.132 |
| 09067/09195 | 19.05 | 49.225 | 19.05 | 14.288 | 18.034 | 40 | 39.1 | 8000 | 11000 | 0.18 |
| 21075/21212 | 19.05 | 53.975 | 21.839 | 15.875 | 22.225 | 41 | 41.7 | 8000 | 10000 | 0.246 |
| M 12649 / M 12610 | 21.43 | 50.005 | 18.288 | 13.97 | 17.526 | 39.3 | 380 | 8000 | 11000 | 0.17 |
| 3659/3620 | 23.812 | 61.912 | 30.416 | 23.812 | 28.575 | 79 | 73 | 7000 | 9400 | 0.44 |
| 3659 CONE | 23.812 | - | 30.416 | - | 30.416 | 79 | 73 | 7000 | 9400 | 0.29 |
| L44643/L44610 | 25.4 | 50.292 | 14.732 | 10.668 | 14.224 | 32.5 | 28 | 7500 | 1000 | 0.13 |
| 12435 | 25.987 | 59.8 | 17.5 | 13.5 | 17.75 | 44.1 | 40.9 | 6300 | 8500 | 0.235 |
| L 44649/L 44610 | 26.988 | 50.292 | 14.732 | 10.688 | 14.224 | 32.5 | 28 | 7500 | 10000 | 0.11 |
| 15590/15520 | 28.575 | 57.15 | 17.462 | 13.495 | 17.62 | 45.5 | 39.6 | 6700 | 8900 | 0.192 |
| 1988/1922 | 28.575 | 57.15 | 19.355 | 15.875 | 19.845 | 55.1 | 47.5 | 6700 | 9000 | 0.22 |
Taper Roller Bearings Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
|
|

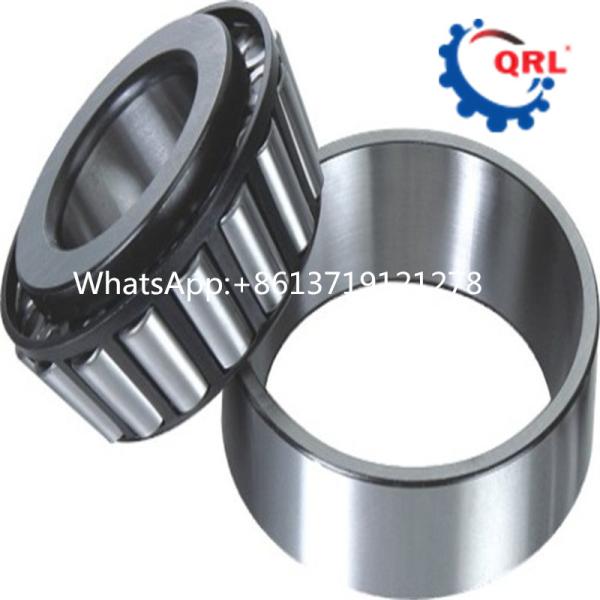

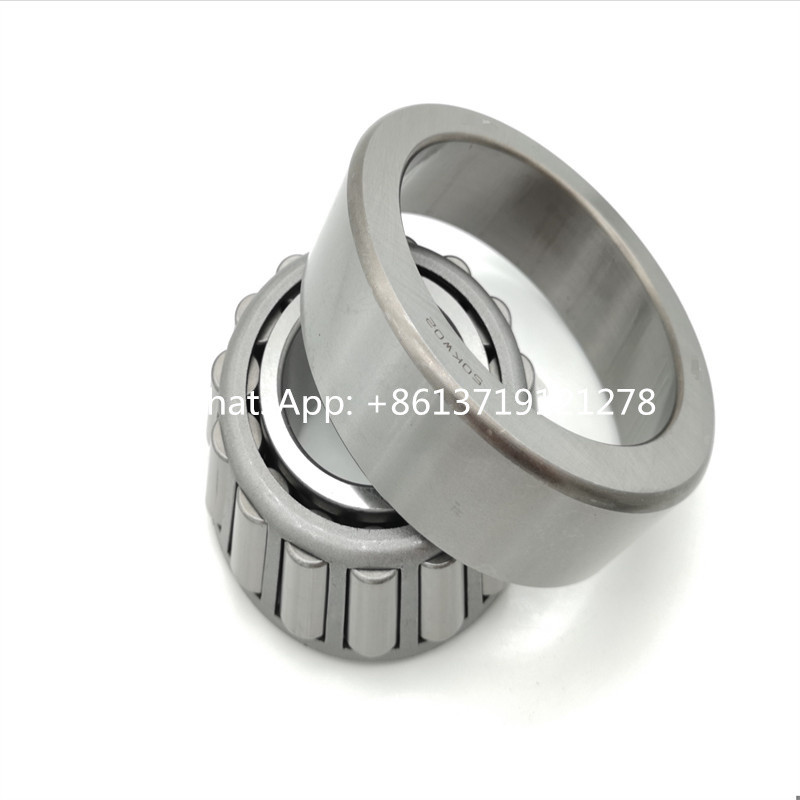

418/414 Tapered Roller Bearing QRL Brand 38.10x88.50x26.99 Images
|
