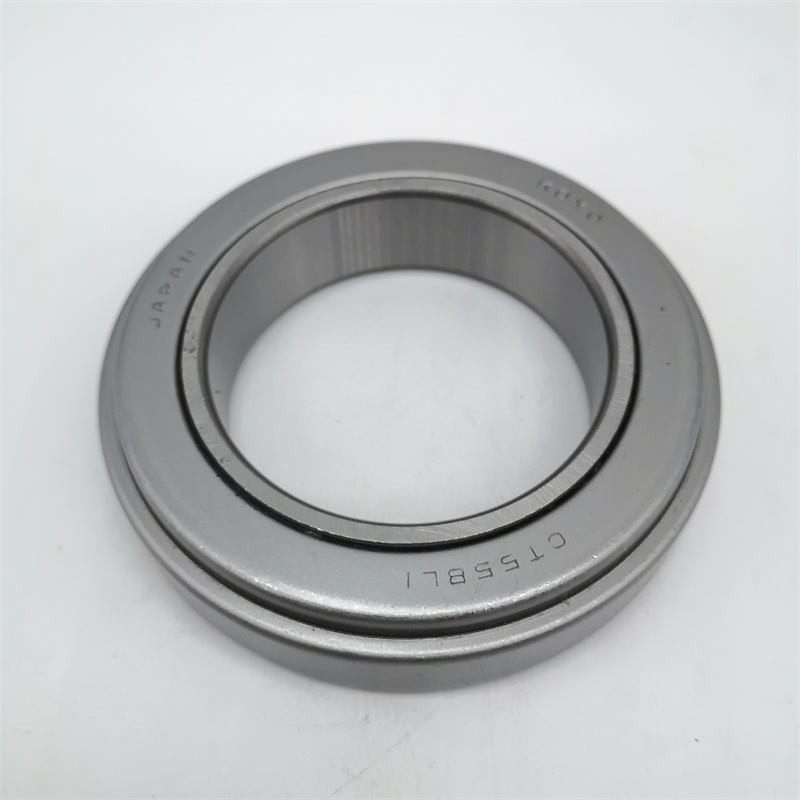

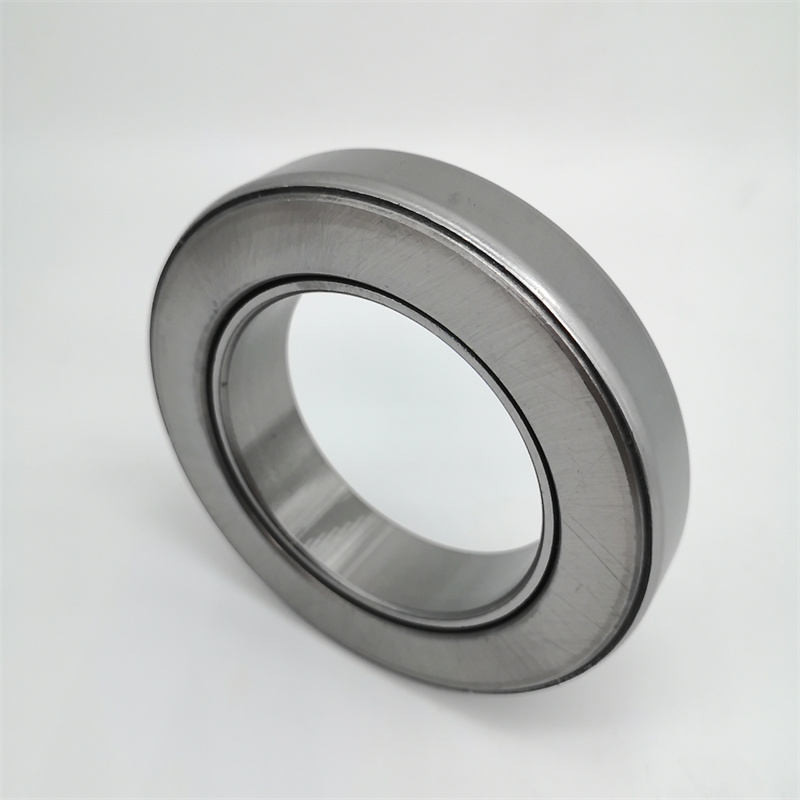

CT55BL1 Clutch Release Bearing 55x88x20mm TK55-1A1U3 0.45 kg/pcs

Brand Name : QRL

Model Number : TK55-1A1U3

Certification : ISO 9001:2000 Standard

Place of Origin : CHINA

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 10000

Delivery Time : 8-12 Working

Packaging Details : Carton/woven bag

Type : Clutch Release Bearing

Number : CT55BL1

Product name : TK55-1A1U3

Applicable models : For TOYOTA COSTER

Weight : 0.45 kg/pcs

Brand : OEM packing

Size : 55x88x19.6mm

Contact Now

CT55BL1 Clutch Release Bearing 55x88x20mm TK55-1A1U3

Clutch Release Bearing Specification

Brand	OEM/QRL packing
Item Name	NSK CT55BL1 Clutch Bearing CT55B Clutch Release Bearing CT55 30502-Z5001 NSK Bearing TK55-1A1U3 TK55-1A1 55TMK804 03452-69000
OEM Code	Clutch Release Bearing CT55 30502-Z5001 NSK Bearing TK55-1A1U3 TK55-1A1 55TMK804 03452-69000
Material	Chrome steel, Gcr15

Clutch Release Bearing Description

The clutch release bearing is installed between the clutch and the transmission. The release bearing seat is loosely sleeved on the tubular extension of the first shaft bearing cover of the transmission. The shoulder of the release bearing is always against the release fork through the return spring and retracts to the final position. , Keep a gap of about 3~4mm with the end of the separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine crankshaft operate synchronously, and the release fork can only move axially along the output shaft of the clutch, it is obviously impossible to directly use the release fork to dial the release lever. The release bearing can make the release lever rotate side by side. The output shaft of the clutch moves axially, which ensures that the clutch can engage smoothly, disengage softly, reduce wear, and extend the service life of the clutch and the entire drive train.

Clutch Release Bearing Product number

QRL No.	Parts No.	NSK	NTN	KOYO	NACHI
QRL-ISUZU/9	1-09820-008-0 9-00095-038-1	TK55-1A1U3	55TMK804X/2E	CT55BL1	55TMK804
QRL-ISUZU/10	9-00095-044-1	TK70-1A1U3	SF1412/2E	CT70B/L1	70TNK-1
QRL-ISUZU/11	8-97209-197-0	48TKB3204R
QRL-ISUZU/12	8-97333-487-0	48TKB3205
QRL-ISUZU/13	8-97089-652 8-97013-553	78TKL4001AR
QRL-ISUZU/14	8-97255-313-0	78TKL4801R
QRL-ISUZU/15	8-94377-417-1	68TKP3201
QRL-ISUZU/16	8-97316-591-0	60TKZ3201
QRL-ISUZU/17	8-94133-417	48TKA3211
QRL-ISUZU/18	8-97316-602-0	60TKZ3503R

Clutch Release Bearing Delivery

Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
